Automation Valves

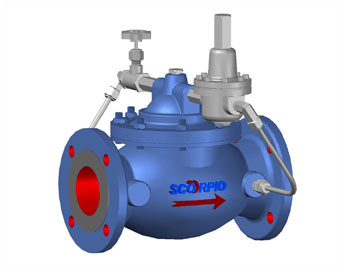

Pressure Relief Valve – 400

Pressure reducing & surge control valve automatically reduces a higher inlet pressure to a steady lower downstream pressure regardless of flow rate and inlet pressure fluctuations. Pilot valve enables the main valve to close quickly to prevent downstream surges.

Additional Relief/Sustaining Function-400

  • 401-02 pressure sustaining/differential pressure/check
  • 402-pressure sustaining solenoid on/off valve
  • 403-surge anticipator relief/remote sense
  • Adjustment range : 0-150 psig

Specifications

  • Pressure Class : 150 & 300 #
  • Temperature Range : -40º to 90º C.
  • Media : Any Liquid Services
  • Material : Body & Cover : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Get Quote

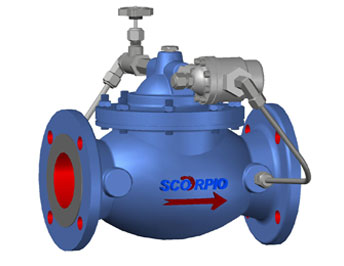

Pressure Reducing Valve – 500

Pressure reducing & surge control valve automatically reduces a higher inlet pressure to a steady lower downstream pressure regardless of flow rate and inlet pressure fluctuations. Pilot valve enables the main valve to close quickly to prevent downstream surges.

Specifications

  • Pressure Class : 150 & 300 #
  • Temperature Range : -40º to 90º C.
  • Media : Any Liquid Services
  • Material : Body & Cover : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
  • Max. Inlet Pressure : 300 PSIG
  • Max. Outlet Pressure : 0 to 150 PSIG
Get Quote

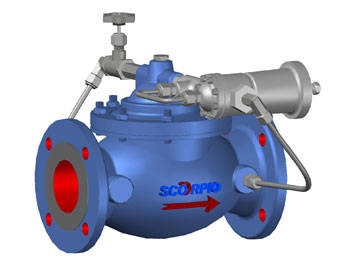

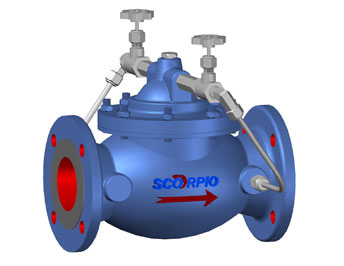

Pressure Reducing/Sustaining Valve – 603

The Series 600 consists of the particular range of pressure reducing valve. The valve's name itself narrates function. The valve automatically reduces a higher inlet pressure to a steady outlet pressure to a steady lower downstream pressure regardless of changing flow parameter and fluctuations in upstream. A solenoid valve is provided to intercept the operation of the pressure reducing control.

Specifications

  • Pressure Class : 150 & 300 #
  • Temperature Range : -40º to 90º C.
  • Media : Any Liquid Services
  • Material : Body & Cover : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Get Quote

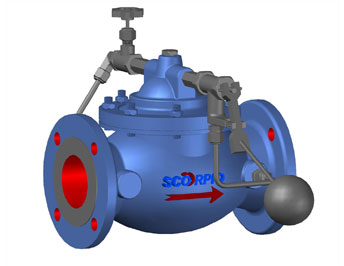

Modulating / Float Valve – 100

The series 100 valves consists of a wide range of float valves. Valves are available for horizontal mounting and vertical mounting. They are designed to controls the level of liquids in open tanks, ponds, basins, and other similar reservoirs. The series consists of 101-modulationg float valve, 102-float on-off globe type valve, 103- float angle type valve.

Additional Relief/Sustaining Function-100

  • 101-Modulating Float Valve
  • 102-Float on/off globe type valve
  • 103-Float on/off angle type valve
  • Maximum Range : 0-300 psig

Specifications

  • Globe : 15-80 mm screwed, 50-150 mm Flanged
  • Angle : 50-100 mm screwed, 100-150 mm flanged.
  • Pressure Ratings : 150 & 300 #
  • Temperature Range : -40º to 90º C.
  • Material : Body & Cover : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
  • Media : Any Liquid Services
Get Quote

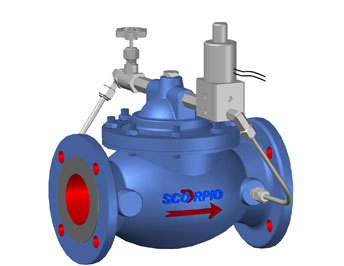

Solenoid Control Valve – 700

The 700series solenoid control valve is classified in two categories (1) Globe and (2) Angle type. The valve is a self-contained unit consists of a diaphragm operated main valve with two solenoid pilot valves. The first (globe) will permit main valve to open when de-energized. The solenoid pilot valve may be activated by pressure, temperature, clock, and float. Etc. other features are available on custom basis.

Additional Relief/Sustaining Function-700

  • 701-Solenoid on/off
  • 702-High Capacity
  • 703-Booster Pump Control
  • 704-High capacity with control
  • Max. Range : 0-300 psig

Specifications

  • Pressure Ratings : Class: 150-300 #
  • Standard Materials : 150-400 mm, WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel.
  • Temperature Range : -40º to 90º C.
  • Media : Any Liquid Services
Get Quote

Separate Opening/Closing Speed
Controls Check Valve – 800

The 800 series Non-slam check valves are diaphragm actuated. The higher downstream pressure enters the valve cover thru a control tube and the valve closes.

Additional Relief/Sustaining Function-800

  • 801R-No speed control
  • 801-01R-No closing speed
  • 801-02R-Opening speed
  • 801-03R-Separate adjustable opening and closing speed (4" & smallest)
  • 801R-Separated opening and closing speed (6" & large)

Specifications

  • Pressure Ratings : Class:150-300 #
  • Standard Materials : Stainless Steel
  • Size : 150-400 mm
  • Temperature Range : -40º to 90º C.
  • Main valve Body & Cover : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
  • Media : Any Liquid Services
Get Quote

Deluge Valve – 1000

Valve closes when air/hyd./electrical pressure, signal is applied to the cover of control. Valve opens when air/hyd./electrical pressure is relieved from the cover of control. Manual by-pass allows manual opening of the valve. The Scorpio ACV 1000 deluge valve meets all requirements for Indian listed, fire protection service. Valve opens on demand to provide water flow to the fire protection sprinkler system. Pilot system can be hydraulically, pneumatically/electrical signal or manually operated. Opening of valve is by loss of control pressure or by manual opening.

Specifications

  • Pressure Ratings : Class:150-300 #
  • Temperature Ranges : -40º to 90º C.
  • Standard Materials : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
  • 150-400 mm
Get Quote
