Industrial Valves - Check Valves

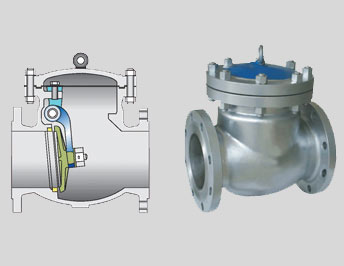

Swing Check Valve

Scorpio cast steel valves are designed and manufactured to provide maximum service life and dependability. ALL check valves meet the design requirements of American Petroleum Institute standard API600 & API 6D. BS EN 13709 and generally, Conform to American Society of Mechanical Engineers standard ASME B16.34. VaLves are available in a compLete range of body/bonnet materials and trims.

Modifications Available in Scorpio Valves

  • Trim Changes
  • End Connection Modifications
  • Packing and Gasket Change
  • Operator Mounting
  • Handwheel Extensions
  • Pressure Equalizing
  • Customer Specified Coatings
  • Weld End Bore Changes
  • Oxygen & Chlorine Clearing & Packaging

Eyebolt

For 150Lb-8', 300Lb-8" 600Lb-6" • 900Lb-1500Lb/2500Lb-4"& over. Bolted cover.

BC

Welded cover & Pressure seal bonnet in services requiring frequent cycling or with high pressure/term perature variations.

End Connection

A choice of flanged, WO flanged or butt welding end for piping flexibiLity.

Body to Cover Joint

A male & female joint or tongue and groove joint is used 150Lb to 600Lb valves. Ring joint is used in the body to cover connection in 900Lb & higher rated valves.

Range Of Materials

Standard body/bonnet materials include nine grades of carbon, low alloy & stainless steels. For special applications they can be supplied in other grades of alloy & stainless steeL Threre's a full range of trim materials to match any service optional packing S, gasket materiaLs are available for a fulL range of service conditions.

Outside Lever B Weigh

All external hinge pin swing check valves 12" & smaller are available with an optional outside lever and weight, internal hinge available with all swing check valves.

Seat Rign

Separate heavy duty fulL ported rings for easy maintenance, Screwed or welded connection into body.

Hcu Weighted Mechanical Accumulator

This design can be used to either dampen or assist closing of the check valve disc depending on orientation. by using the hydraulic controL unit to buffer action the disc, the vaLve opens at lower flow rates.

Get Quote

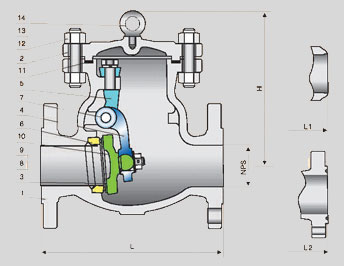

Swing , Cast Steel Check Valve 150LB/300LB

Applicable Standards

  • Steel Check Valves API 6D
  • Steel Check Valves ISO 14313
  • Steel Valves ASME 81634
  • Face To Face ASME B16.10
  • End Flanges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection and Test API 598/API 6D

Design Descriptions

  • Bc, Bolted Cover
  • Swing Type, Anti-rotation Disc
  • Renewable Seat Rings
  • Non-penetrate Disc Shaft
  • Horizontal Or Vertical Service
  • Flanged Or Butt Welding Ends

Materials Of Parts

S. No. Part Name Carbon Steel ASTM Material 1/1/4cr-1/2 mo
1 Body A216-WCB A217-WC6
2 Cover A216-WCB A217-WC6
3 Disc 1 Al 05-CR13 Al 82-F1 1 +HF
4 Hinge A216-WCB A217-WC6
5 Fork Part A216-WCB P21 7-W6
6 Seat Ring A105+CR13 Al 82-F11 +HF
7 Hinge Pin A276-420 A276-304
8 Disc Washer Carbon Steel A276-304
9 Disc Nut Carbon Steel A194-7
10 Disc Nut Pln Carbon Steel A276-420
11 Gasket Spiral wound (Graphite+304)
12 Stud A193-B7 A193-B18
13 Stud Nut A194-2H A194-7
14 Eye Bolt 2 Carbon Steel

Dimensional Datas Of ANSI Class 150 LB

NPS 2 2/1/2 3 4 6 8 10 12 14 16 18 20 24 26 28 30 36 in
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 900 mm
L/L1 8 8.5 9.5 11.5 14 19.5 24.5 27.5 31 34 38.5 38.5 51 51 57 60 77 in
(RF/BW) 203 216 241 292 356 495 622 966 787 864 978 978 1295 1295 1448 1524 1956 mm
L2 8.5 9 10 12 14.5 20 25 28 31.5 34.5 39 39 51.5 in
(RTJ) 216 229 254 305 368 508 635 711 800 876 991 991 1308 mm
H 6 6.5 6.88 8 11.5 13.88 15.38 17 18.75 20.62 22.88 24.62 34.75 37 37 38.62 48 in
152 165 175 204 293 353 390 432 475 525 582 627 883 940 940 980 1220 mm
Wt(kg.) 14 20 25 40 71 118 177 263 353 542 632 855 970 1600 1600 1990 2760 RF/RTJ
10 12 17 29 57 96 143 227 295 468 552 755 831 1420 1420 1760 2230 BW

Dimensional Datas Of Ansi Class 300 LB

NPS 2 2/1/2 3 4 6 8 10 12 14 16 18 20 24 26 28 30 36 in
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 900 mm
L/L1 10.5 11.5 12.5 14 17.5 21 24.5 28 33.00 34.00 38.5 40 53 53 59 62.75 82 in
(F1F/BW) 267 292 318 356 445 533 622 711 838 864 978 1016 1346 1346 1499 1594 2083 mm
L2 11.12 12.12 13.12 14.62 18.12 21.62 25.12 28.62 33.62 34.62 39.12 40.75 53.88 54 60 63.75 in
(RTJ) 283 308 333 371 460 549 638 727 854 879 949 1035 1368 1372 1524 1619 mm
H 6 6.5 6.88 8 11.5 13.88 15.38 17 18.75 20.62 22.88 24.62 34.75 35.88 37 38.62 48 in
152 165 175 204 992 353 390 432 475 525 582 627 883 910 940 980 1220 mm
VVt(kg.) 16 23 29 46 82 136 204 302 405 625 730 985 1115 1465 1840 2290 3180 RF/RTJ
11 13 18 31 61 103 155 245 315 503 593 812 895 1205 1525 1895 2395 BW

Get Quote

Cast Steel Gate Valve 600 LB /900 LB

Applicable Standards

  • Steel Gate Valves API 600/API6D
  • Steel Gate Valves ISO 10434/150 14313
  • Steel Valves Asme B16.34
  • Face To Face ASME B16.10
  • End Flanges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection And Test API 598/API 6D

Design Descriptions

  • Full Port Design
  • 0s4 Out Side Srcew And Yoke
  • Bb. Bolted Bonnet
  • Flexible Wedge, Fully Guided
  • Choice Of Solid Or Split Wedge
  • Renewable Seat Rings
  • Forged T-head Stem
  • Rising Stem And Non-rising Hand Wheel
  • Flanged Or Butt Welding Ends
  • Available With Bg Operator

Materials Of Parts

S. No. Part Name Carbon Steel ASTM Material 1/1/4cr-1/2 mo
1 Body A216-WCB A217-WC6
2 Bonnet A216-WCB A21 7-W6
3 Wedge A216-WCB+CR13 A217-WC6+HF
4 Stem A182-F6a CR-MO-V
5 Seat ring Al 05+CR13 A182-F1+HF
6 Stem Backseat A276-420 A276-304
7 Bonnet Gasket Spiral wound (Graphtle+304)
8 Bonnet Stud A193-87 A193-B16
9 Bonnet Stud Nut A194-2H A194-7
10 Packing Graphite
11 Gland A276-420 A276-304
12 Gland Flange A216-WCB A217-WC6
13 Eye Bolt Pin Carbon Steel A276-420
14 Eye BoR Carbon Steel A193-87
15 Eye Boll Nut Carbon Steel A194-2H
16 Grease Fitting Brass + Steel
17 Yoke Sleeve Aluminium - Bronze
18 Yoke Sleeve Jam Nut Carbon Steel
19 Hand Wheel Malleable Iron
20 Hand Wheel Nut Carbon Steel

Dimensional Datas Of Ansi Class 600 LB

NPS 2 2/1/2002 3 4 6 8 10 12 14 16 18 20 24 26 28 30 32 36 in
ON 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 800 900 MM
L/L1 11.5 13 14 17 22 26 31 33 35 39 43 47 55 57 61 65 70 82 in
(RF/BW) 292 330 359 432 559 660 787 838 889 991 1092 1194 1397 14.48 1549 1651 1778 2083 mm
L2 11.62 13.12 14.12 17.12 22.12 26.12 31.12 33.12 35.12 39.12 43.12 47.25 55.38 57.5 61.5 65.5 70.62 82.62 in
(RTJ) 295 333 359 435 562 664 791 841 892 994 1095 1200 1407 1461 1562 1644 1794 2099 mm
H 16.5 18.75 20.38 25.5 33 40.38 48.38 57 62 70.62 76 87 101.5 105 109.5 140 124 140 in
(Open) 418 476 518 646 840 1025 12.3 1450 1575 1795 1930 2210 2580 2665 2780 2895 3150 3560 rnal
Do 8 10 10 12 18 20 24 24 24 24 26 26 29 29 32 32 38 40 in
200 250 250 300 450 500 600 600 600 600 640 640 720 720 800 800 950 1000 mm
Wt(kg.) 36 52 67 112 170 393 610 890 1245 1530 1945 2450 2995 3475 3725 4045 4185 4480 RF
29 42 53 83 125 310 472 730 1055 1240 1625 2030 2590 2855 3065 3440 3780 4085 BW

Dimensional Datas Of Ansi Class 900 LB

N PS 2 2/1/2 3 4 6 8 10 12 14 16 18 20 24 in
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 mm
L/L1 14.5 16.5 15 18 24 29 33 38 40.5 44.5 48 52 61 in
(RF/BW) 368 419 381 457 610 737 838 737 1029 1130 1219 1321 1549 mm
L2 14.62 16.62 15.12 18.12 24.12 29.12 33.12 38.12 40.88 44.88 48.5 52.5 61.75 in
(RTJ) 371 422 384 460 613 740 841 968 1038 1140 1232 1334 1568 mm
H 19.62 21.5 22.5 26.62 35.5 4.5 53 60 74.88 81 87 101 104 in
(Open) 498 547 573 678 900 1103 1345 15.25 1900 2055 2215 2565 264 mm
Do 10 10 12 18 20 24 26 29 32 32 38 38 40 in
250 250 300 450 500 600 640 720 800 800 950 950 100 mm
Wt(kg.) 74 131 101 172 335 640 1100 1600 2250 2850 3060 3935 49 RF
54 105 78 135 260 515 920 1380 2010 2565 3485 3250 4065 BW

Get Quote

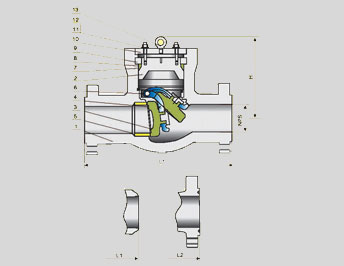

Swing , Cast Steel Check Valve 1500 LB /2500 LB

Applicable Standards

  • Steel Check Valves API 6D
  • Steel Gate Valves ISO 10434/150 14313
  • Steel Valves Asme B16.34
  • Face To Face ASME B16.10
  • End Ranges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection And Test API 598/API 6D

Design Descriptions

  • BC, Bolted Cover
  • Swing Type, Anti-rotation Disc
  • Renewable Seat Rings
  • Non-penetrate Disc Shaft
  • Horizontal Or Vertical Service
  • Ranged Or Butt Welding Ends

Materials Of Parts

No. Part Name Carbon Steel  ASTM Material 1/1/4cr-1/2 mo
1 Body A216-WCB A217-W06
2 Pres. Seal Bonner A216-WCB A217-WC6
3 Disc Al 05-HF A182-Fl1+HF
4 Hinge A2113-WCB A217-W6
5 Seat Ring Al 05-HF A182-F11+HF
6 Hinge Pin Steel Ring A276-304
7 Bonnet Gasket A276-420 30485 Ring
8 Adapter Ring Carbon Steel A276-420
9 Retainer Carbon Steel A276-420
10 Cover Carbon Steel Alloy Steel
11 Bonnet Stud A193-B7 A193-B7
12 A194-2H A194-2H A194-2H
13 Eye Bolt Carbon Steel

Dimensional Datas Of Ansi Class 1500 LB

NPS 2 2/1/2 3 4 6 8 10 12 14 16 in
DN 50 65 80 100 150 200 250 300 350 400 mm
L/L1 14.5 16.5 18.5 21.5 27.15 32.75 39 44.5 49.5 54.5 in
(RF/BW) 368 419 470 546 705 832 991 1130 1257 1384 mm
L2 14.62 16.62 18.62 21.62 28 33.12 39.38 45.12 50.25 55.38 in
(RTJ) 371 422 473 549 711 841 1000 1146 1276 1407 mm
H 9.5 10 13 14.75 18.88 23.5 26 29.12 30.88 32.88 in
240 256 330 375 480 595 660 740 785 835 mm
Wt(kg.) 40 63 70 115 250 470 740 1100 1410 1600 RF/RTJ
29 47 49 84 152 310 470 710 910 1100 BW

Dimensional Datas Of Ansi Class 2500 LB

NPS 2 2/1/2 3 4 6 8 10 12 14 16 in
DN 50 65 80 100 150 200 250 300 350 400 mm
L/L1 17.75 20 22.75 26.5 36 40.25 50 56 in
(RF/BW) 451 508 578 673 914 1022 1270 1422 mm
L2 17.88 20.25 23 26.88 36.5 40.88 50.88 56.88 in
(RTJ) 454 514 584 683 927 1038 1292 1445 mm
H 17.75 13.25 13.75 15.12 19.5 24.62 28 35.62 in
275 335 350 385 495 625 712 905 mm
Wt(kg.) 50 76 85 165 460 900 1300 1800 RF/RTJ
35 55 68 115 225 580 860 1150 BW
