Automation Valves

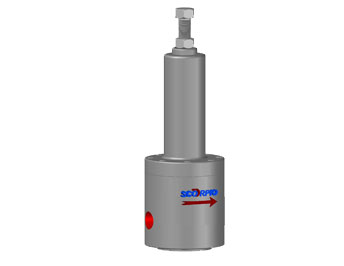

Dome Regulator – SC-1500

The SDLR-1500 Scorpio-01 series regulator is a piston sensed, dome loaded, positive biased, pressure regulator. The positive bias provide a constant outlet pressure from 50-1500 PSI (3.4-105 BAR) greater than the reference pressure. Due to the self-vented feature, the outlet pressure can be vented through the regulator allowing downstream regulation even with a decreasing reference pressure. The SDLR-1500 Scorpio-01 provides valve. A segregated vent allows the outlet pressure to be vented separately and eliminates mixing media with the reference pressure zone.

Fluid Media All gases and liquids compatible with materials of construction
Max. Rated Inlet Pressure 5000 PSIG
Outlet Pressure Range; 50-1500 PSIG
Design Proof Pressure 7000 PSIG
Design Burst Pressure 8000 PSIG
Materials Body, S.S. 304/S.S. 316 all adjustable
Trims S.S. & 17-4 PH
Flow Capacity Main Valve CV=0.7, Vent Valve CV=0.35
Temperature -17º to 170º C
Leakage Bubble Tight CL VI
Ports 1/4", 3/8", 1/2" NPT/BSP

Get Quote

Pressure Regulator HP-800

Technical Specification

Media All gases compatible with materials of construction for other media consult with factory
Rated Inlet Pressure 6000 PSIG (Stainless steel body)
Outlet Pressure Range 4-50, 4-150, 4-250, 4-500 PSIG
Proof Pressure 8500 PSIG
Burst Pressure 10000 PSIG
Materials Body - Stainless Steel
Flow Capacity Cv = .08
Ambient operating and -55º C To 75º C
fluid media temperature Port Size 1/8", 1/4", 3/8", 1/2" NPTF/BSPF

Get Quote

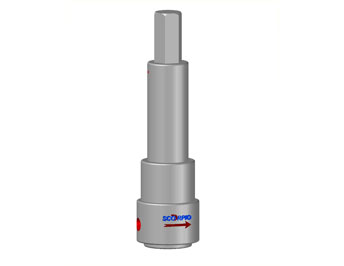

Pressure Regulator HP-2000

These controllers represents a new height in the achievements of continuous design and development improvements by Scorpio Valves. Series-2000/01 are compact light easy to adjust, offered in three basic grades of material for bodies and spring housings.

Additional Typical Application :

Series-2000/01 controllers are designed for use with all gases and liquids compatible with the materials employed while we can offer faster delivery in standard materials. Special materials for aggressive conditions can be supplied on request.

Technical Specification

Application Air/Liquid/Gas
Inlet Size 3/8", 1/2", 3/4"
Inlet Pressure - Max 10000 PSI
Outlet Pressure - Max 9000 PSI
Orifice Size 0.5 to 1.0
Temperature Range -55º to 90lº C.
Material C.S./Alloy Steel/NAB

Get Quote
