Automation Valves

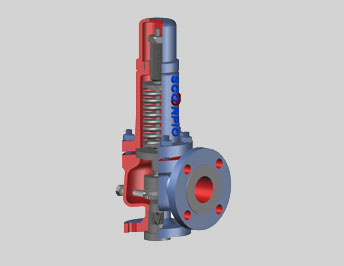

Safety Relief Valve C-601

Technical Specification

Inlet Size 1" x 2" through 10" x 12" ANSI Flanged
Material WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Inlet Rating ANSI Class 150# to 2500#
Orifice Size Sizes D Through T
Temperature Range -450º F to 1500º F
Pressure 5 to 6500 PSIG
  • Spring loaded safety relief valve
  • Full lift pop type design
  • Open bonnet with cap & liver
  • Close bonnet with liver
  • Close bonnet with cap
  • Close bonnet with packed liver
  • Metal seat
  • Stallited nozzle & dics
  • Soft seat with PTFE & Viton
  • Bellows seal safety relief valve

Get Quote

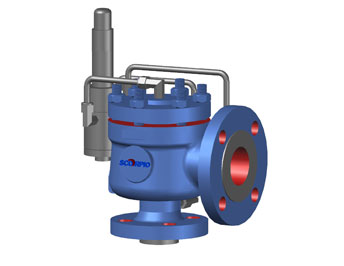

Safety Relief Valve P-401

Technical Specification

Size 1" x 2" to 8" x 10"
Body WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Trim C.S./Alloy Steel
Minimum Pressure 20 PSI
Maximum Pressure 20 PSI
Maximum Pressure 3000 PSI
Temperature 200º C

Operating Advantage :

  • Bubble-tight closer to set pressure : Series 401 valves operate bubble tight at higher pressure to set pressure ratios, allowing operators to run very close to the system's maximum allowable working pressure. While protecting the system from over pressure, series 401 allows maximum product through put, increased system profitability and reduced fugitive emissions.
  • Set pressure and blowdown set at pilot control valve : In line service, settings and blowdown adjustments are completed quickly and easily without main valve intrusion. Subsequent reduction in product loss and fugitive emissions add to system profitability.
  • Typical application : The PSV 401series pilot operated valves are built in conformance to section VIII of the ASME boiler and pressure vessel code for air, gas, vapor and liquid service.

Get Quote

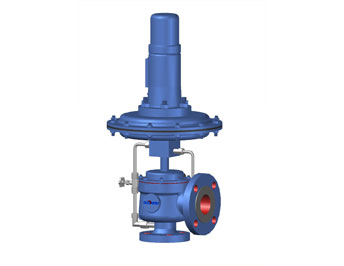

Pilot Operated Safety Relief Valve V-1010

Technical Specification

Size 4x6 / 6x8 / 8x10 / 10x12
Body WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Trim C.S./Alloy Steel
Minimum Pressure 1 PSI
Maximum Pressure 20 PSI
Temperature 70º C

Low Pressure Relief Valve:

Low pressure system can be protected from over pressure by spring-operated valves. Weight-loaded valves or pilot-operated valves.

Product:

The series 1010 product is a very wide range of both pressure and pressure relief valves. Primarily designed for protecting low pressure storage vessels and tanks as well as low pressure piping systems.


Get Quote

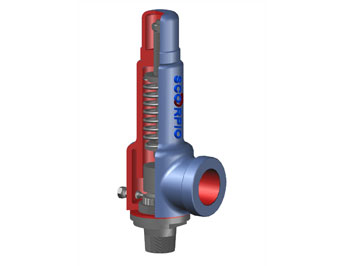

Safety Relief Valve L-2500

Technical Specification

Valve Size 1/2" to 3" NPT/BSP
Pressure Range 0 to 3000 PSIG
Material WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel

Typical Application :

Built in conformance to ASME code section / API for air, gas, steam and liquid service


Get Quote

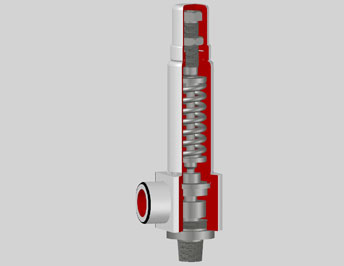

Safety Relief Valve HP-8000

Built in conformance to ASME code section / API for air, gas, steam and liquid service Technical Speci

Valve Size 1/4" to 2" NPT/BSP
Pressure Range 0 to 10000 PSIG
Material C.S./CF8/CF8M/Alloy steel flat seats for easy maintenance

Get Quote

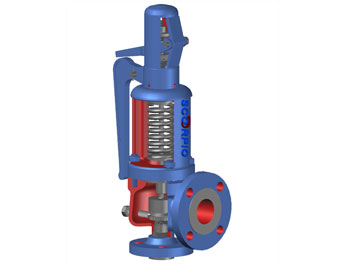

Safety Relief Valve Open Bonnet 0 – 601

Inlet Size 1" x 2" through 10" x 12" ANSI Flanged
Material WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Inlet Rating ANSI Class 150# to 2500#
Orifice Size Sizes D Through T
Temperature Range -450º F to 1500º F
Pressure 5 to 3000 PSIG

Specifications

  • Spring loaded safety relief valve
  • Full lift pop type design
  • Open bonnet with cap & liver
  • Close bonnet with liver
  • Close bonnet with packed liver
  • Metal seat
  • Stallited nozzle & dics
  • Soft seat with PTFE & Viton
  • Bellows seal safety relief valve
Get Quote
